Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Type: Spray Drying Equipment

Application: Medicine Processing, Chemicals Processing, Food Processing

Condition: New

Voltage: 220V

Power: 5.5kw, 5.5KW/220V

Dimension(L*W*H): 1050*900*1660mm

Key Selling Points: Easy to operate

Warranty: 1 Year

Weight (KG): 120

Applicable Industries: Laboratory, University

Showroom Location: None

Marketing Type: Hot Product 2019

Machinery Test Report: Not Available

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Pump, Motor, PLC

Evaporation Capacity(kg/h): Other

Heating Method: Electric Heating

Material: SUS304

Air Inlet Temperature: 110â„ƒ-350â„ƒ

Frequency: 50/60 Hz

Body material: SUS-304

Max. Capacity: 3500ml/h for water

Min. sample feed: 100ml

Dimensions: 1050*900*1660mm

Nozzle type: Two fluid nozzle

Atomizer material: SUS-316L

After-sales Service Provided: Online support, Video technical support

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Πιστοποίηση: CE Certificate

Βασικές πληροφορίες

Πιστοποίηση: CE Certificate

Πληρωμής & Αποστολής Όροι

Packaging Details: tri-ply wood with standard spray dryer machine

Supply Ability: 200 Set/Sets per Year spray dryer machine

Περιγραφή προϊόντων

Product Introduction

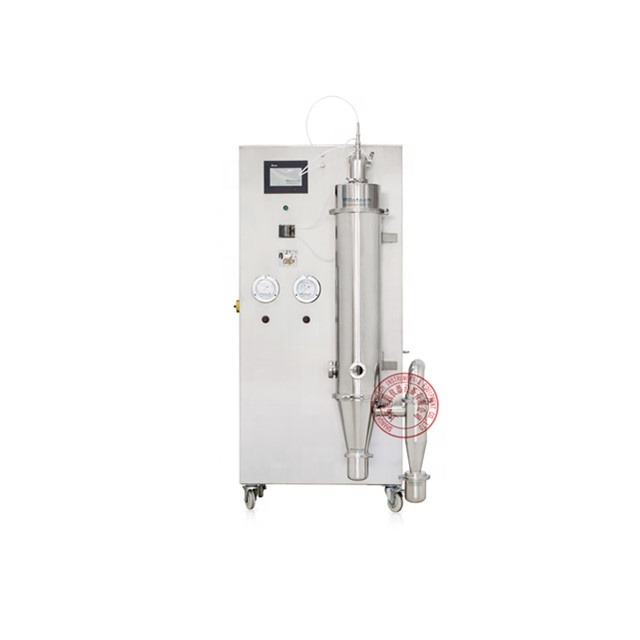

Pilotech YC-018 lab spray dryer is capable of processing 3500 ML per hour, and it only needs a minimum amount of 100 ML materials to perform one experiment. Is suitable both for laboratory use and the pilot plant use. The inlet air temperature for the YC-018 laboratory spray dryer ranges from 110 to 300 °C. As the range is relatively wide, it is suitable for drying the spray of most materials. After the drying process, the particle size ranges from 1 to 100 microns, so it is suitable for the spray drying of ceramics and catalysts.

The minimum and maximum capacities of YC-018 lab spray dryer are respectively 50 ML and 4 L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.

With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.

PRODUCT SPECIFICATIONS

No	Parameter	Data
1	Power	5.5KW
2	Voltage	220V
3	Frequency	50/60 Hz
4	Air Inlet temperature	110 ℃ -350 ℃
5	Air Outlet temperature	65 ℃ -200 ℃
6	Heating control	±1 ℃
7	Max. Sample feed	3500ml/h
8	Body material	SUS-304 Stainless steel

FEATURES AT A GLANCE

Flexible switch between small and high processing capacities

The minimum and maximum capacities of YC-018 mini spray dryer are respectively 50ML and 4L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.

Easy to use

Color Touch Screen,Fast setup and cleaning times.

Scale up to pilot or industrial scale possible.

Visible process due to glass assembly.

Adjustable particle size (1–100 microns)

Functionality

• Inlet Temperature

• Airflow Volume

• Air compressor flow

• Pump Speed

• De-blocker Frequency

Two Fluid Nozzle with SUS316L stainless steel

The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Preparation convenience

The minimum of materiel only needs 50ml, which is convenient for dealing with small amount of sample, and it's maximum capacity can up to 4000ml/H as well as the dealing with vast material is also very rapidly.

High recovery rate

With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones. With the structured redesigned, YC-018 can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.

Certificate Showing

Exhibition

WHY CHOOSE US

* A simple and effective lab spray dryer for product research and development.

* With over 20 years of continual development, Pilotech lab spray dryer is world renowned for our quality and reliability.

* From bench spray dryer to pilot scale spray dryer, from aqueous solutions to organic solvents, complete specifications.

* You can discover our lab spray dryer outstanding efficiency and flexibility.

Pilotech started to produce laboratory spray dryer since 2005. We have over 50 patents and over 15 software copyrights. Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer. Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service. For this reason, the product is very popular among researchers. It has occupied more than 70% of the market in China.

Packing & Delivery

We support sea, air, express and so on.

FAQ

Q1:Do all products have English operating interfaces and operating manuals?

A1:Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use.

Q2:How is the after-sales service of your company?

A2:We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .

Q3:How is the stability and durability of your products?

A3:The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.
